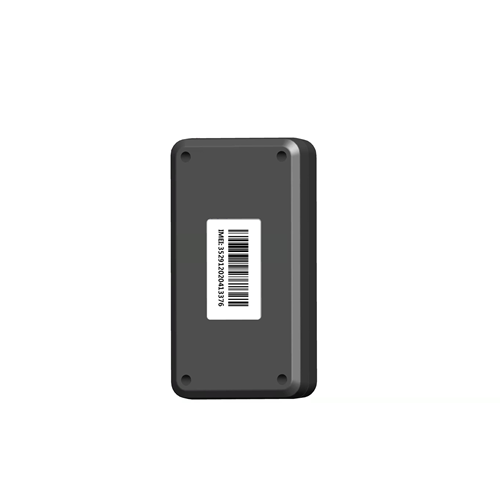

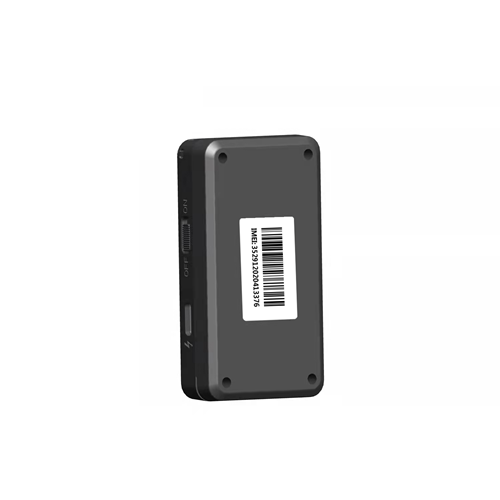

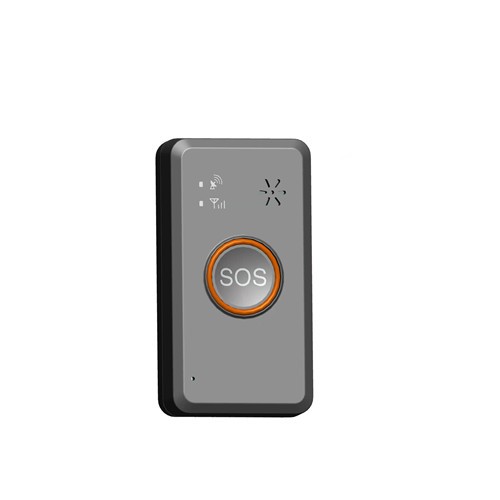

4G LTE Cat1 Personal GPS Tracker

Weight

65G

USB Cable Length

30cm

Power supply

3.7V industrial-grade Li-Polymer Rechargable battery

Power consumption

Current in standby mode: 10uA

Operating temperature

-35°C to 80°C (for the device without a battery)
-20°C to 60°C (for the device with a normal temperature resistant battery)

Operating humidity

5% to 95%

LED indicator

Red indicator showing the network signal
Blue indicator showing the GPS signal

Button/Switch

1 Power On Switch

Memory

32MB ROM size

Sensor

3-axis accelerometer

Working Mode

Standby mode(Report data very 2 hours)

Tracking mode(Report data very 5 mintues)

Power-saving mode(Report data once very day,standby 1.5 Years)

Frequency band

LTE-FDD: B2/B4/B5/B12/B13/B25/B26 WCDMA: B2/B4/B5(Optinal)

GNSS

Dual-mode positioning (GPS/BeiDou/GLONASS)

Positioning accuracy

5 meters

I/O port

1 Debug USB Interface (Optional,just for the custoimzed project)
