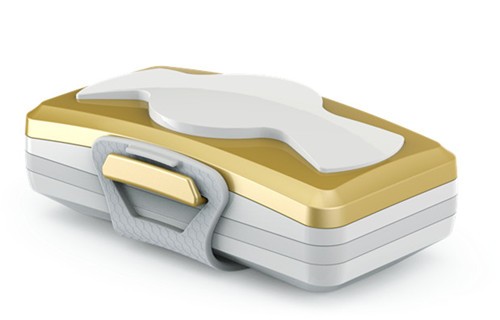

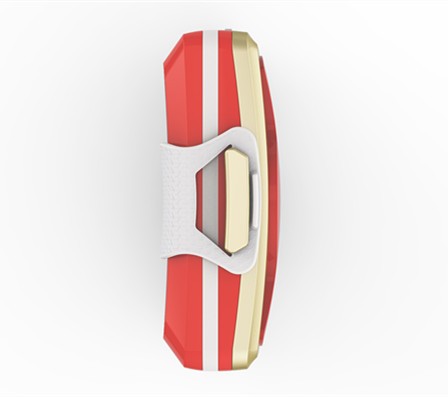

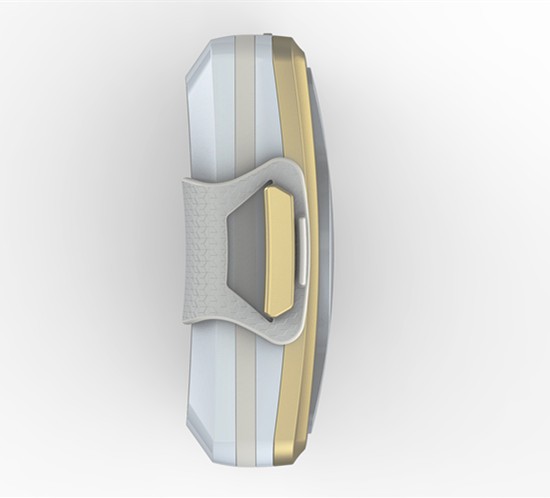

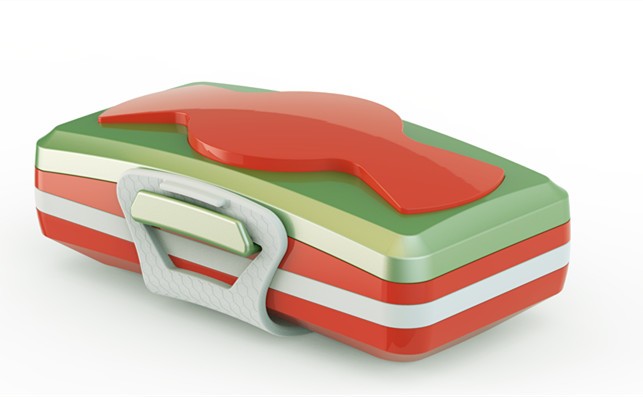

4G Pet GPS Tracker

GSM/GPRS + 4G LTE Pet/Cattle Tracking
Mini sized, Waterproof IP67.
Real time tracking by GPS satellite.
Long battery working time.
Built-in G-sensor for motion and power management.
Activity monitoring.
Data logging: 5000 locations.
GPRS/4G LTE blind area data re-upload function
Firmware upgrade over the air.
Reply Google map link of current position
Geo-fencing alarm.

EMAIL

FEATURES


LowBat_60x60.jpg Low Battery Alarm                                              PowerOff_60x60.jpg Power On Timer

OverSpeed_60x60.jpg Tamper Alert                                                    GEO_60x60.png GEO-Fence Alarm


SPECIFICATIONS

Dimension

65mm x 38mm x 18mm

Weight

65G

USB Cable Length

30cm

Power supply

3.7V industrial-grade Li-Polymer Rechargable battery

Power consumption

Current in standby mode: 10uA

Operating temperature

-35°C to 80°C (for the device without a battery)
-20°C to 60°C (for the device with a normal temperature resistant battery)

Operating humidity

5% to 95%

LED indicator

Red indicator showing the network signal
Blue indicator showing the GPS signal

Button/Switch

1 Power On/Off Switch

Memory

32MB ROM size

Sensor

3-axis accelerometer

Working Mode

Standby mode(Report data very 2 hours)

Tracking mode(Report data very 5 mintues)

Power-saving mode(Report data once very day,standby 12 months)

Frequency band

LTE-FDD Cat M1:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85

LTE-FDD Cat NB2:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85

GSMS: 850/900/1800/1900mhz

GNSS

Dual-mode positioning (GPS/BeiDou/GLONASS)

Positioning accuracy

5 meters

I/O port

1 Debug USB Interface (Optional,just for the custoimzed project)

ACCESSORIES

P1 4G Tracker

USB Charging Cable

  1000mAh Internal Battery


APPLICATIONS
