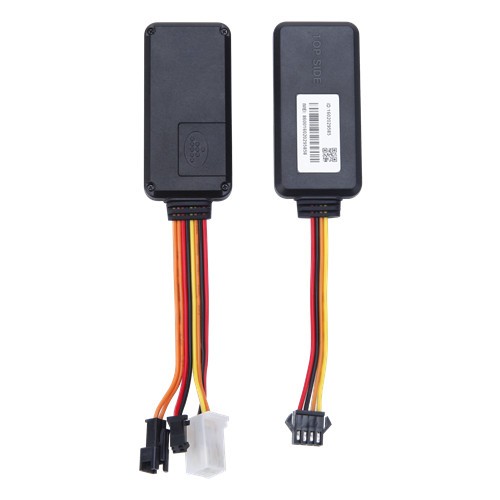

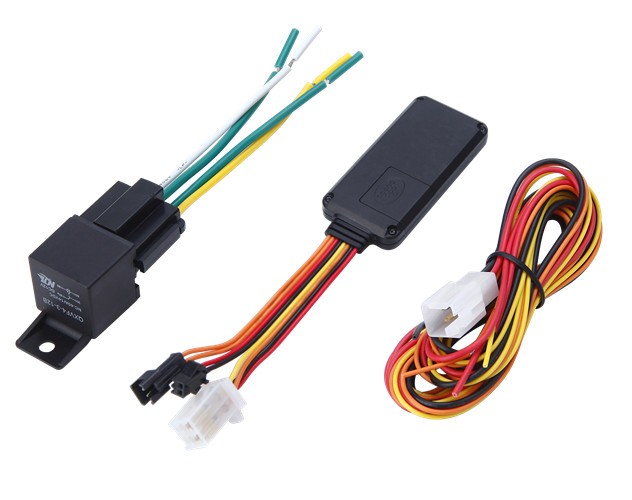

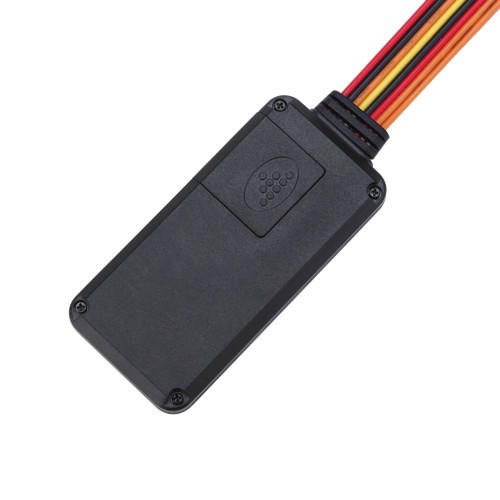

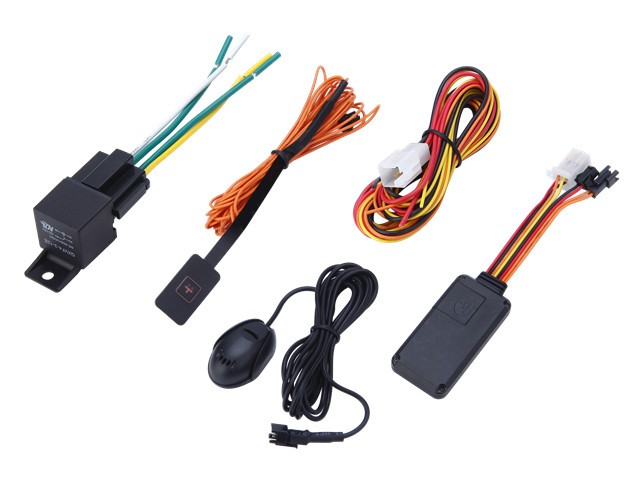

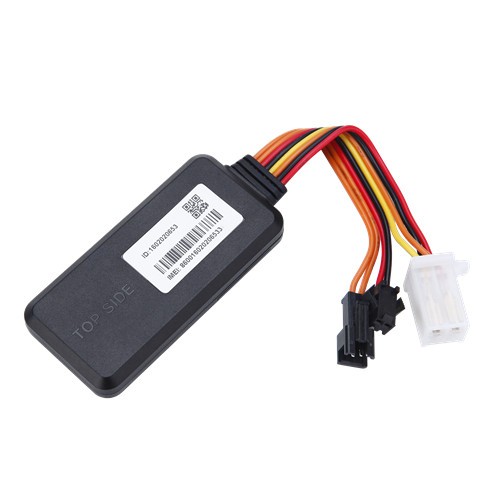

2G Vehicle GPS Tracker

Weight

35G

I/O power cable length

100cm

Power supply

DC 9~40 V/1.5 A

Power consumption

Current in standby mode: 10 mA

Operating temperature

-35°C to 80°C (for the device without a battery)
-20°C to 60°C (for the device with a normal temperature resistant battery)

Operating humidity

5% to 95%

LED indicator

Red indicator showing the network signal
Blue indicator showing the GPS signal

Button/Switch

1 SOS Button(Optional)

Memory

32MB ROM size

Sensor

3-axis accelerometer

BLE (optional)

BLE 2.4G, compatible with BLE 5.0 GHz(Optional,just for the customized project)

Frequency band

GSM: 850/900/1800/1900

GNSS

Dual-mode positioning (GPS/BeiDou/GLONASS)

Positioning accuracy

2.5 meters

I/O port

1 Positive input by default (ACC)
1 Analog detection input (0~40V/external Power)

1 SOS Digtal Input(Optional)

1 Microphone Analog Input(Optional)
1 Debug interface (Optional,just for the custoimzed project)
