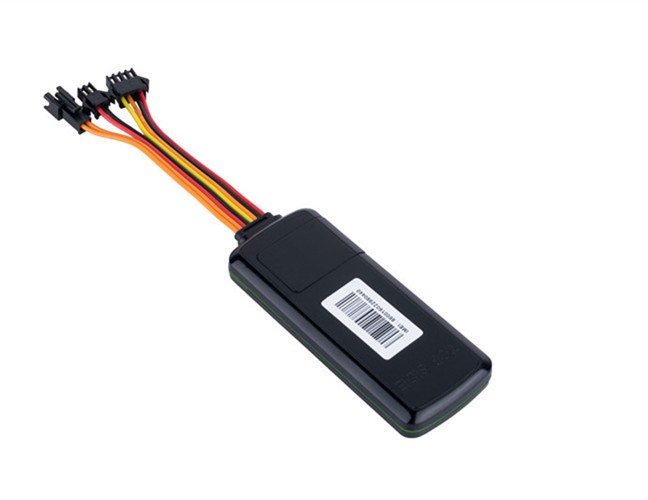

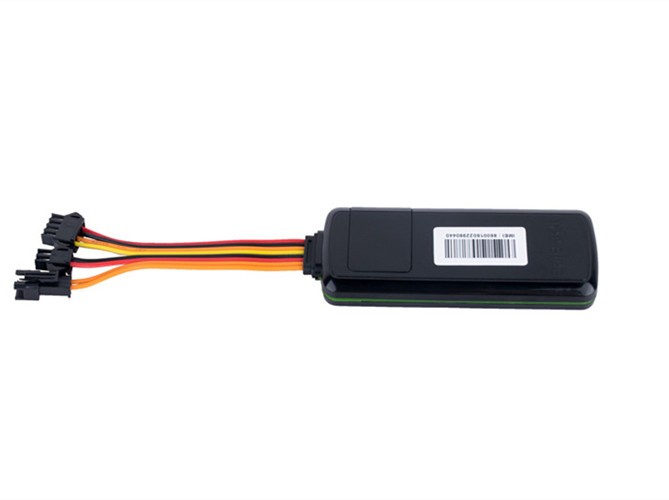

4G LTE Cat4 GPS Tracker

M728---2G/3G/4G GPS Vehicle Tracker has a very wide range of industrial and civil applications, is a powerful GPS tracking device, 9-40 v voltage range, suitable for cars, motorcycles, and so on the vehicle's track positioning, remote location, cutting oil, remote mobile phone, computer checking their position at any time. At the same time also has the function of monitor and SOS distress. Typical application industry are: logistics enterprises, the management team, the bus management, insurance companies, power companies, oil companies, telecommunications companies, taxi companies, car sales, car rental company scale, less-than-one carload leasing companies, auto car drives, small and medium-sized enterprise team, vehicle maintenance and repair personnel, automotive technology researchers, individual owners.

FEATURES

Vibration Alarm Power Off Alarm

Over-speed Alarm GEO-Fence Alarm

Remote Cut-off (Fuel/Power) SOS Alarm

ACC Detection Moving Alarm

SPECIFICATIONS

Dimension	91.85mm x 36.88mm x 12.60mm
Weight	40G
I/O power cable length	100cm
Power supply	DC 9~40 V/1.5 A
Power consumption	Current in standby mode: 15 mA
Operating temperature	-35°C to 80°C (for the device without a battery) -20°C to 60°C (for the device with a normal temperature resistant battery)
Operating humidity	5% to 95%
LED indicator	Red indicator showing the network signal Blue indicator showing the GPS signal
Button/Switch	1 SOS Button(Optional)
Memory	32MB ROM size
Sensor	3-axis accelerometer
BLE (optional)	BLE 2.4G, compatible with BLE 5.0 GHz(Optional,just for the customized project)
Frequency band	M728AU For Australia: GSM: 850/900/1800/1900mhz + WCDMA: B1/B2/B4/B5/B8 + 4G LTE-FDD: B1/B2/B3/B5/B7/B8/B28/B66 M728E For Europe: GSM: 900/1800mhz + WCDMA: B1/B8 + 4G LTE-FDD:B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41
GNSS	Dual-mode positioning (GPS/BeiDou/GLONASS)
Positioning accuracy	2.5 meters
I/O port	1 Positive input by default (ACC) 1 Analog detection input (0~40V/external Power) 1 SOS Digtal Input(Optional) 1 Microphone Analog Input(Optional) 1 Debug interface (Optional,just for the custoimzed project)

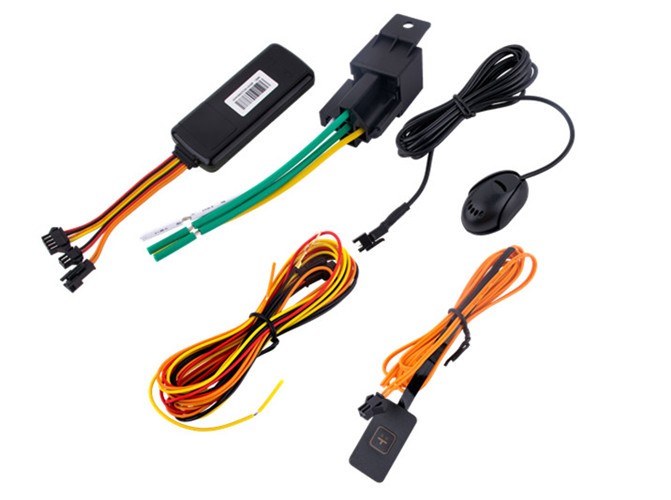

ACCESSORIES

M728 4G Tracker

Exter Power Cable

50mAh Internal Battery

OPTIONAL ACCESSORIES

Relay (12 V/24 V)	SOS Button Cable	Microphone Cable

APPLICATIONS
