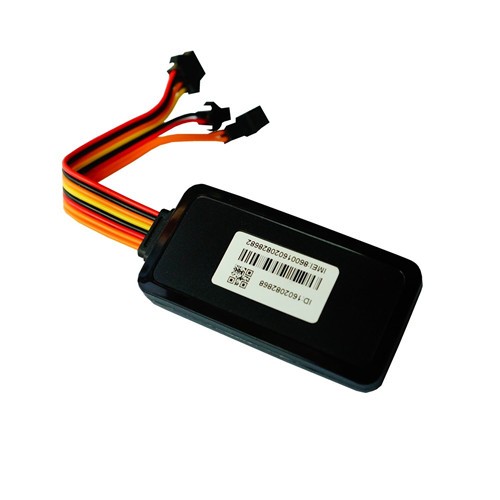

4G LTE Cat1 GPS Tracker

M276---GPS Vehicle Tracker has a very wide range of industrial and civil applications, is a powerful GPS tracking device, 9-40 v voltage range, suitable for cars, motorcycles, and so on the vehicle's track positioning, remote location, cutting oil, remote mobile phone, computer checking their position at any time. At the same time also has the function of monitor and SOS distress. Typical application industry are: logistics enterprises, the management team, the bus management, insurance companies, power companies, oil companies, telecommunications companies, taxi companies, car sales, car rental company scale, less-than-one carload leasing companies, auto car drives, small and medium-sized enterprise team, vehicle maintenance and repair personnel, automotive technology researchers, individual owners.

EMAIL

FEATURES

Vibration_60x60.jpg Vibration Alarm                                                 PowerOff_60x60.jpg Power Off Alarm

OverSpeed_60x60.jpg Over-speed Alarm                                             GEO_60x60.png GEO-Fence Alarm

FuelCut_60x60.jpg Remote Cut-off (Fuel/Power)                               SOS_60x60.jpg SOS Alarm

ACC_60x60.jpg ACC Detection                                                               moving-60x60.jpg Moving Alarm

SPECIFICATIONS

Dimension

70mm x 35mm x 11.6mm

Weight

35G

I/O power cable length

100cm

Power supply

DC 9~40 V/1.5 A

Power consumption

Current in standby mode: 10 mA

Operating temperature

-35°C to 80°C (for the device without a battery)
-20°C to 60°C (for the device with a normal temperature resistant battery)

Operating humidity

5% to 95%

LED indicator

Red indicator showing the network signal
Blue indicator showing the GPS signal

Button/Switch

1 SOS Button(Optional)

Memory

32MB ROM size

Sensor

3-axis accelerometer

BLE (optional)

BLE 2.4G, compatible with BLE 5.0 GHz(Optional,just for the customized project)

Frequency band

M276E For Europe

GSM: 900/1800mhz + 4G LTE Cat1:B1/B3/B5/B7/B8/B20

M276SA For South America and Australia

GSM: 850/900/1800/1900mhz + 4G LTE Cat1:B1/B2/B3/B5/B7/B8/B66

GNSS

Dual-mode positioning (GPS/BeiDou/GLONASS)

Positioning accuracy

2.5 meters

I/O port

1 Positive input by default (ACC)
1 Analog detection input (0~40V/external Power)

1 SOS Digtal Input(Optional)

1 Microphone Analog Input(Optional)
1 Debug interface (Optional,just for the custoimzed project)

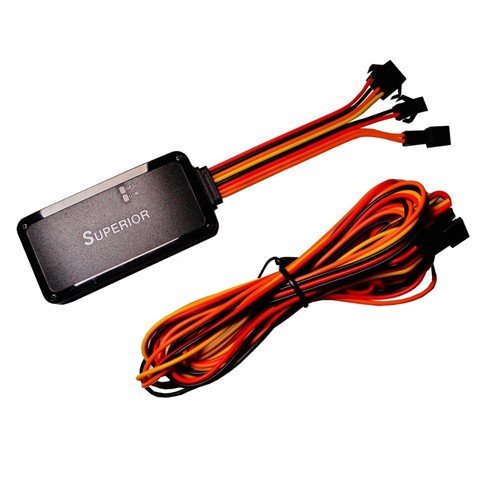

ACCESSORIES

M276 4G Tracker

Exter Power Cable

  70mAh Internal Battery

OPTIONAL ACCESSORIES

Relay (12 V/24 V)

SOS Button CableMicrophone Cable







APPLICATIONS
