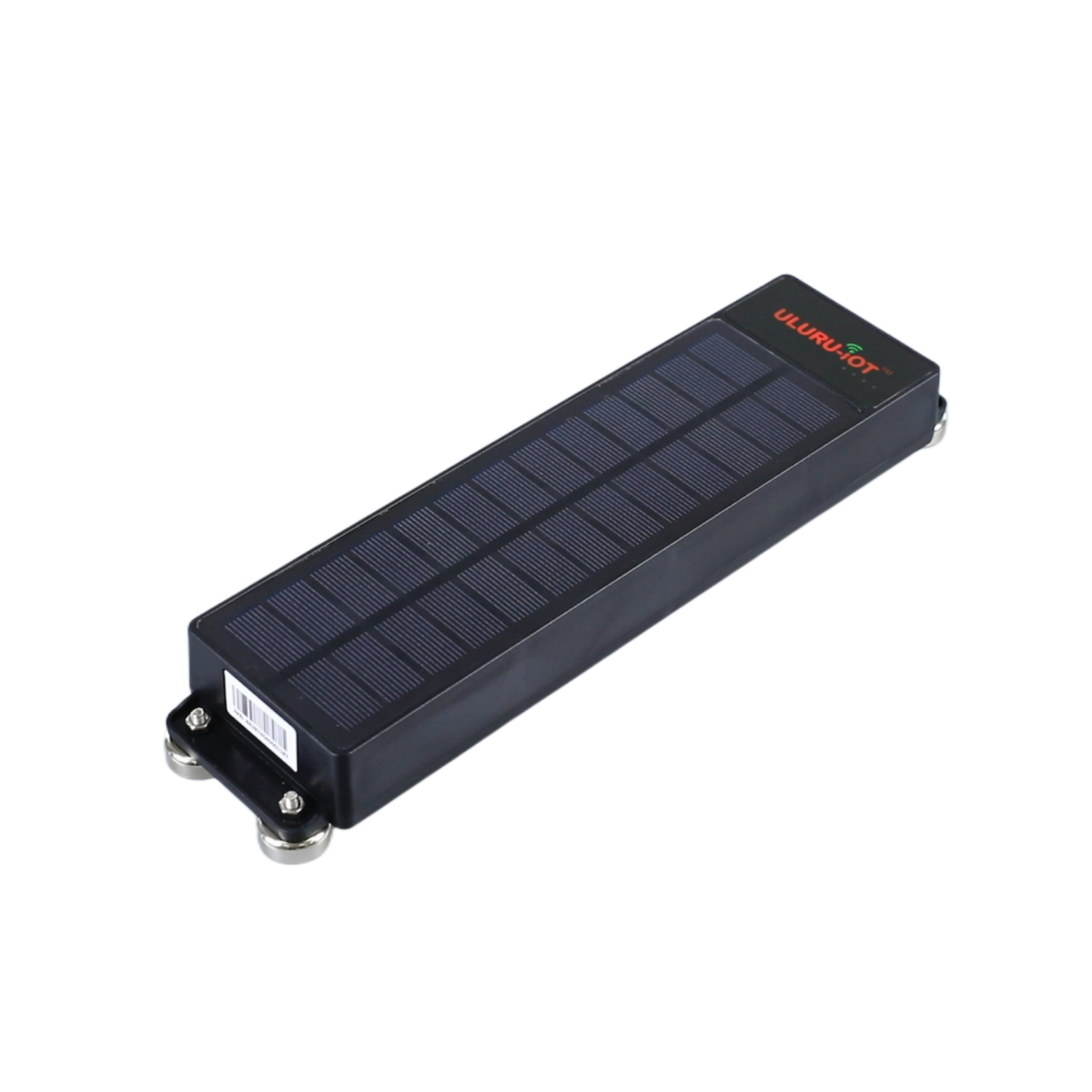

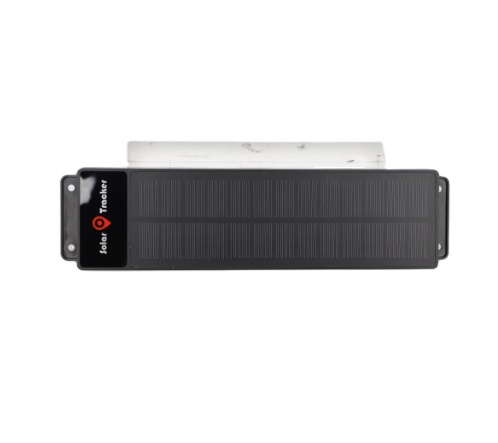

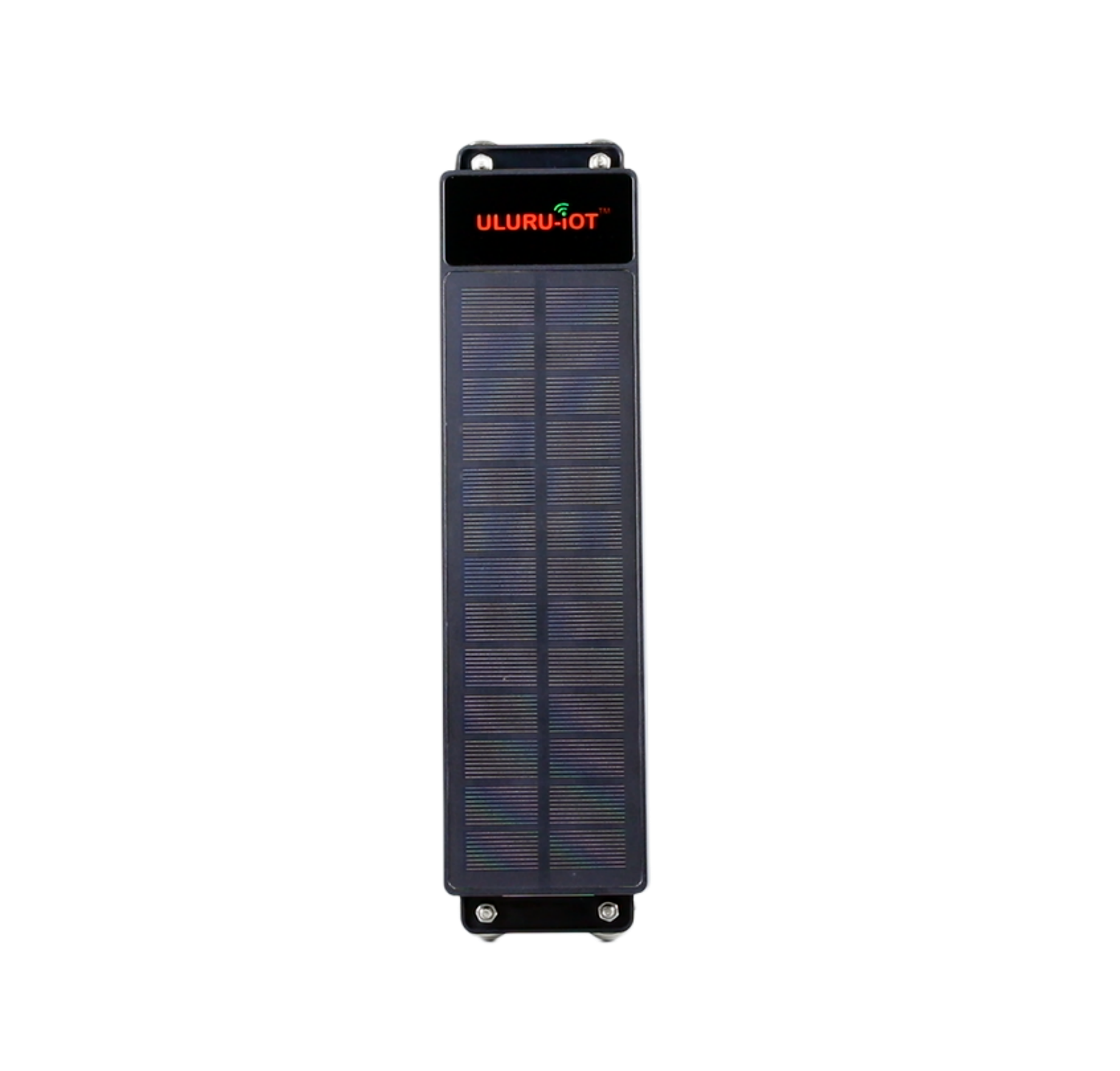

U10 Solar Powered 4G LTE Asset GPS Tracker

Smart gps tracker & locator U10

4G LTE CAT M1 or Cat1 and GSM Solar Powered Asset gps tracking device
Cat M1/Cat NB2/EGPRS,support below 4G bands:
Option 1, CATM1: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/ B19/B20/B25/B26/B27/B28/B66/B85
NB:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20 /B25/B26/B27/B28/B66/B85 EGPRS:850/900/1800/1900Mhz Option 2, Cat 1, support below bands: FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66 TDD: B34/B38/B39/B40/B41
GSM: B2/B3/B5/B8

BLE Beacon(Optional)
Container trailers Tracker with 10000mAh internal battery

EMAIL

FEATURES


LowBat_60x60.jpg Low Battery Alarm                                              PowerOff_60x60.jpg Power On Timer

OverSpeed_60x60.jpg Tamper Alert                                                    GEO_60x60.png GEO-Fence Alarm


SPECIFICATIONS

Dimension

238.7(260)*68*28mm

Weight

150g

USB Debug Cable Length

30cm(Optional)

Power supply

3.7V industrial-grade Li-Polymer Rechargable battery

Power consumption

Current in standby mode: 10uA

Operating temperature

-35°C to 80°C (for the device without a battery)
-20°C to 60°C (for the device with a normal temperature resistant battery)

Operating humidity

5% to 95%

LED indicator

Red indicator showing the network signal
Blue indicator showing the GPS signal

Button/Switch

1 Power On Switch

Memory

up to 75000 locations packets

Sensor

3-axis accelerometer

Working Mode

Standby mode(Report data very 2 hours)

Tracking mode(Report data very 5 mintues)

Power-saving mode(Report data once very day,standby 3~5 Years)

Frequency band

GSM: 850/900/1800/1900mhz

4G LTE M1:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85

NB-iOT:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85

GNSS

Dual-mode positioning (GPS/BeiDou/GLONASS)

Positioning accuracy

2.5 meters

I/O port

1 Debug USB Interface (Optional,just for the custoimzed project)

ACCESSORIES

U10 4G Tracker

USB Charging Cable(Optional)

  10000mAh Rechargable Internal Battery


APPLICATIONS
