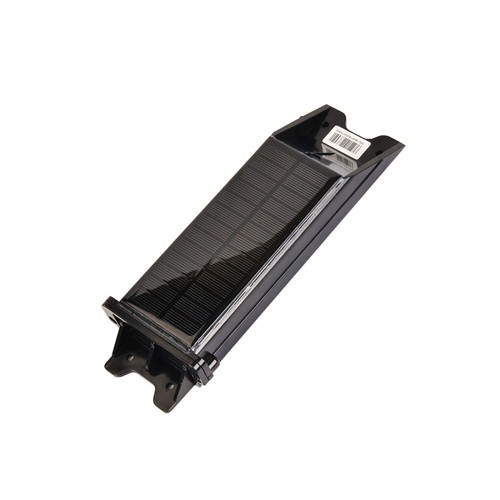

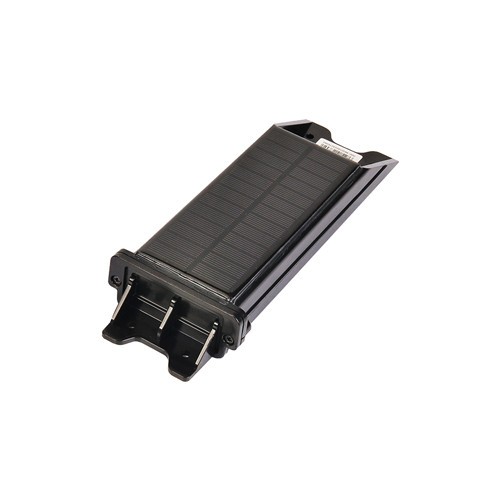

U929 Solar Powered 4G LTE Asset GPS Tracker

Weight

150g

USB Debug Cable Length

30cm(Optional)

Power supply

3.7V industrial-grade Li-Polymer Rechargable battery

Power consumption

Current in standby mode: 10uA

Operating temperature

-35°C to 80°C (for the device without a battery)
-20°C to 60°C (for the device with a normal temperature resistant battery)

Operating humidity

5% to 95%

LED indicator

Red indicator showing the network signal
Blue indicator showing the GPS signal

Button/Switch

1 Power On Switch

Memory

up to 75000 locations packets

Sensor

3-axis accelerometer

Working Mode

Standby mode(Report data very 2 hours)

Tracking mode(Report data very 5 mintues)

Power-saving mode(Report data once very day,standby 3~5 Years)

Frequency band

GSM: 850/900/1800/1900mhz

4G LTE M1:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85

NB-iOT:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85

GNSS

Dual-mode positioning (GPS/BeiDou/GLONASS)

Positioning accuracy

2.5 meters

I/O port

1 Debug USB Interface (Optional,just for the custoimzed project)
