Home > Products > Asset GPS Tracker
4G LTE CatM Asset GPS Tracker 4G LTE CatM Asset GPS Tracker 4G LTE CatM Asset GPS Tracker 4G LTE CatM Asset GPS Tracker 4G LTE CatM Asset GPS Tracker 4G LTE CatM Asset GPS Tracker 4G LTE CatM Asset GPS Tracker 4G LTE CatM Asset GPS Tracker 4G LTE CatM Asset GPS Tracker

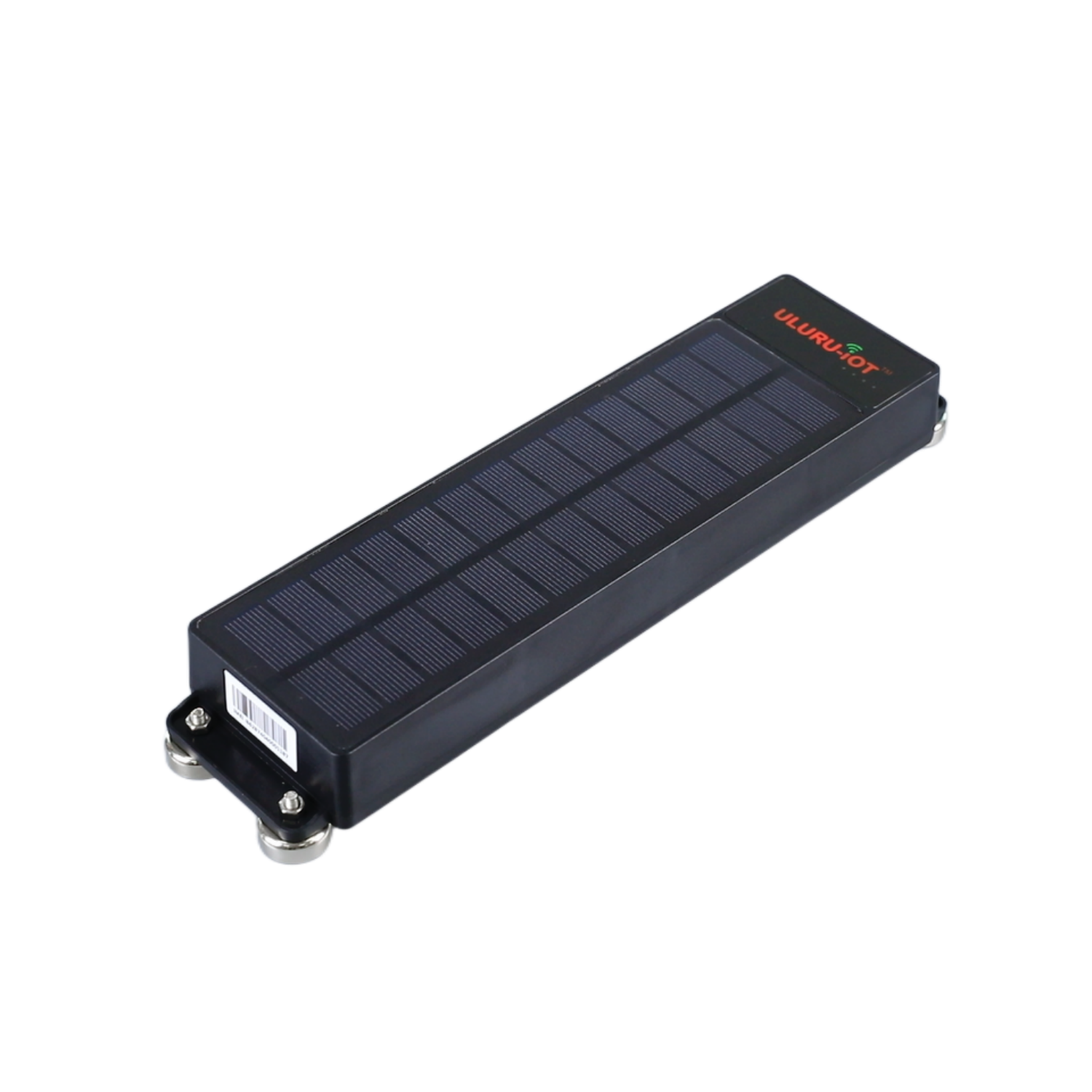

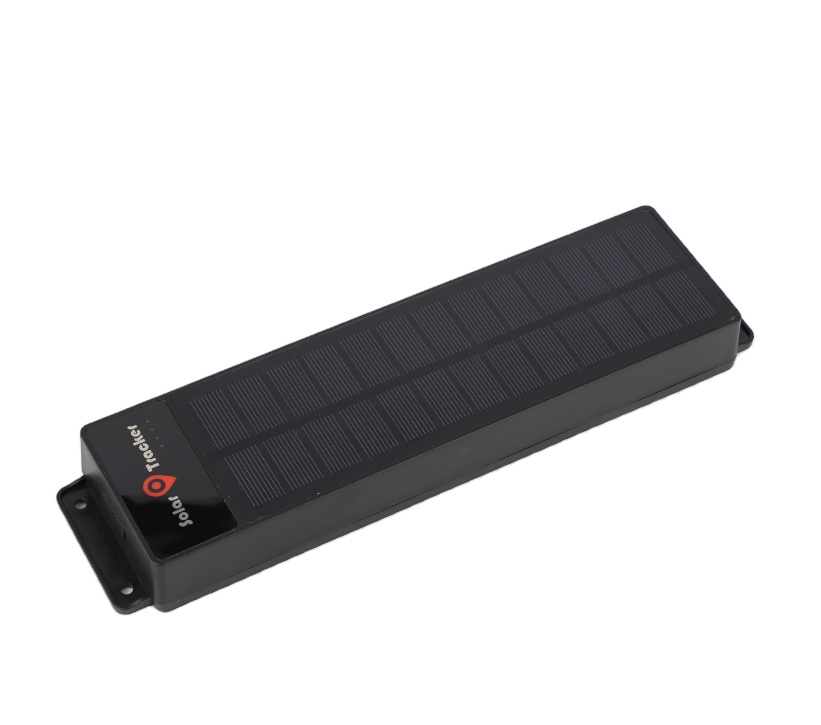

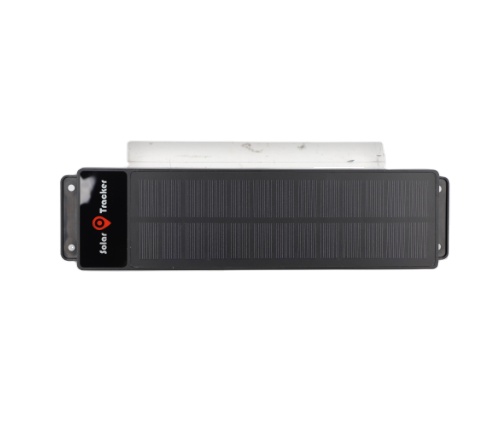

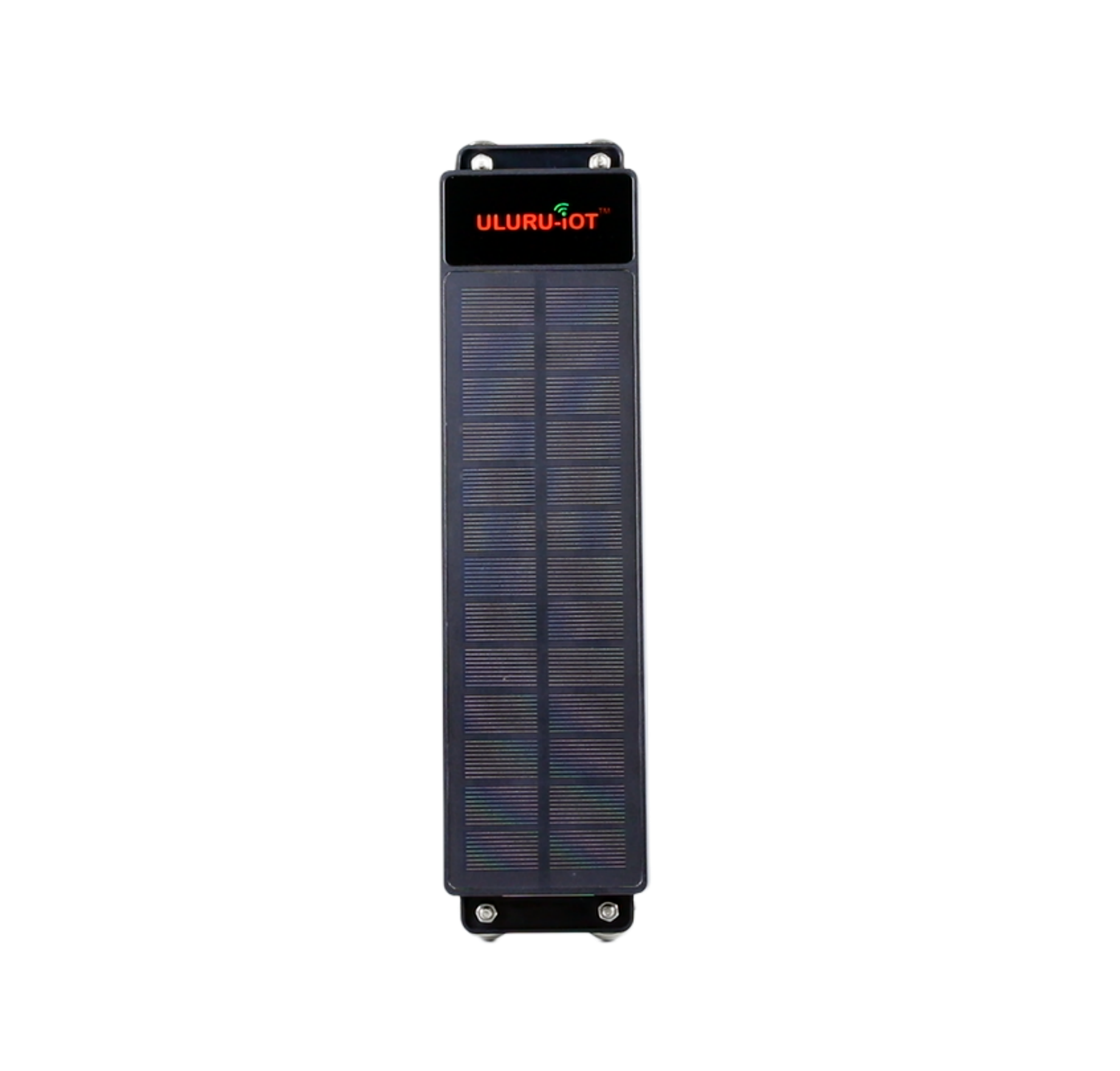

4G LTE CatM Asset GPS Tracker

Smart gps tracker & locator U10

4G LTE CAT M1 or Cat1 and GSM Solar Powered Asset gps tracking device
Cat M1/Cat NB2/EGPRS,support below 4G bands:
Option 1, CATM1: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/ B19/B20/B25/B26/B27/B28/B66/B85
NB:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20 /B25/B26/B27/B28/B66/B85 EGPRS:850/900/1800/1900Mhz Option 2, Cat 1, support below bands: FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66 TDD: B34/B38/B39/B40/B41
GSM: B2/B3/B5/B8

BLE Beacon(Optional)
Container trailers Tracker with 10000mAh internal battery

EMAIL

FEATURES


LowBat_60x60.jpg Low Battery Alarm                                              PowerOff_60x60.jpg Power On Timer

OverSpeed_60x60.jpg Tamper Alert                                                    GEO_60x60.png GEO-Fence Alarm


SPECIFICATIONS

Dimension

238.7(260)*68*28mm

Weight

150g

USB Debug Cable Length

30cm(Optional)

Power supply

3.7V industrial-grade Li-Polymer Rechargable battery

Power consumption

Current in standby mode: 10uA

Operating temperature

-35°C to 80°C (for the device without a battery)
-20°C to 60°C (for the device with a normal temperature resistant battery)

Operating humidity

5% to 95%

LED indicator

Red indicator showing the network signal
Blue indicator showing the GPS signal

Button/Switch

1 Power On Switch

Memory

up to 75000 locations packets

Sensor

3-axis accelerometer

Working Mode

Standby mode(Report data very 2 hours)

Tracking mode(Report data very 5 mintues)

Power-saving mode(Report data once very day,standby 3~5 Years)

Frequency band

GSM: 850/900/1800/1900mhz

4G LTE M1:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85

NB-iOT:B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85

GNSS

Dual-mode positioning (GPS/BeiDou/GLONASS)

Positioning accuracy

2.5 meters

I/O port

1 Debug USB Interface (Optional,just for the custoimzed project)

ACCESSORIES

U10 4G Tracker

USB Charging Cable(Optional)

  10000mAh Rechargable Internal Battery


APPLICATIONS
